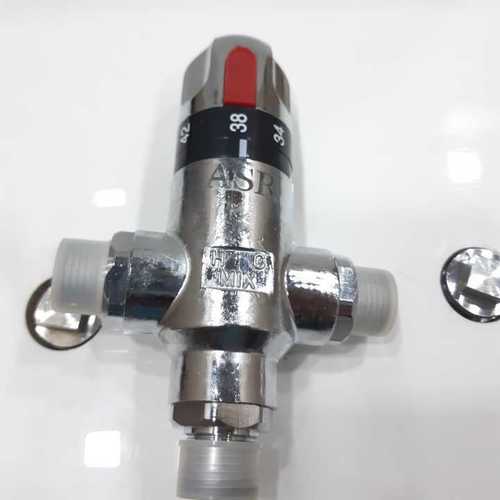

Thermostatic Mixing Valve

Name: Thermostatic Mixing Valve
Brand: TAPS N LOCKS
Price: 3850 INR
Availability: InStock

3850 INR

Get a Price/Quote

Product Details:

Valve Type Thermostatic
Material Brass (Body), Stainless Steel & Polymer Components
Valve Size DN15, DN20, DN25
Connection Type Threaded BSP (Male/Female)
Features Anti-Scald Protection, Temperature Stability, Compact Design
Control System Thermostat-controlled Mixer
Sealing EPDM / NBR Gaskets
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermostatic Mixing Valve Price And Quantity

Price 3850 INR

Mounting Position Horizontal or Vertical
Adjustment Handle Ergonomic with Safety Lock
Min Cold Supply Temperature 5C
Minimum Working Pressure 0.5 bar
Operating Environment Indoor, Dry Conditions
Flow Rate Up to 50 L/min (Varies by Size)
End Connection Male/Female Threaded or Compression
Application Standards BS EN 1111 & BS EN 1287 Compliant
Max Hot Supply Temperature 90C
Thermal Response Time <2s Stabilization
Maintenance Easy In-line Serviceability
Surface Finish Nickel Plated

Thermostatic Mixing Valve Product Specifications

Port Size 1/2 inch, 3/4 inch, or 1 inch
Structure Triple Port Valve Body
Valve Size DN15, DN20, DN25
Pressure Max. Working Pressure: 10 bar
Connection Type Threaded BSP (Male/Female)
Control System Thermostat-controlled Mixer
Features Anti-Scald Protection, Temperature Stability, Compact Design
Media Water
Temperature Adjustment Range 30C to 65C (86F-149F)
Sealing EPDM / NBR Gaskets
Power Manual / Non-Electric Operation
Application Hot Water Mixing in Plumbing Systems
Type Thermostatic Mixing Valve
Valve Type Thermostatic
Disc Brass / Engineering Polymer
Material Brass (Body), Stainless Steel & Polymer Components
Pin Standard Brass Stem

Mounting Position Horizontal or Vertical
Adjustment Handle Ergonomic with Safety Lock
Min Cold Supply Temperature 5C
Minimum Working Pressure 0.5 bar
Operating Environment Indoor, Dry Conditions
Flow Rate Up to 50 L/min (Varies by Size)
End Connection Male/Female Threaded or Compression
Application Standards BS EN 1111 & BS EN 1287 Compliant
Max Hot Supply Temperature 90C
Thermal Response Time <2s Stabilization
Maintenance Easy In-line Serviceability
Surface Finish Nickel Plated
